Brand Name : HYCM-Tower CraneS
Model Number : ZLP630 suspended scaffold platform
Certification : CE, ISO
Place of Origin : China
MOQ : 1 set of suspended scaffold platform
Price : Negotiation
Payment Terms : 30% advance payment and balance before shipment or by copy of B/L
Supply Ability : 300 pcs of suspended scaffold platform per month
Delivery Time : about 7 days after receiving the advance payment
Packaging Details : In nude or as customized, 20'GP or 40'HQ containers for suspended scaffold platform
Type : LTD63 Hoister Suspended Scaffold Platform with 6m*0.69m*1.18m Aerial Work Platform and Diameter 8.3mm Steel Rope
Power supply : 380V/50Hz or based on your inquriy
Ambient temperature : -20℃~+40℃

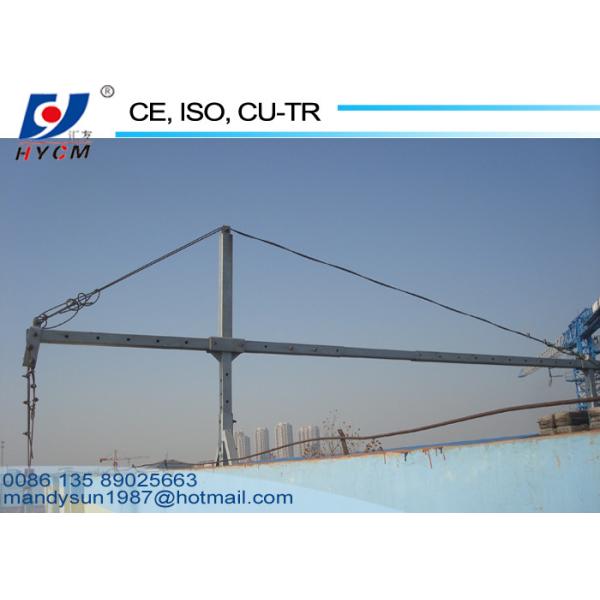

Suspended mechanism : Square tube 160MN
Safety rope : Forced nylon
Working wire rope : 4*31SW+NF-8.3
Warranty : 12 months from BL date
Rated load : 630kg
Suspended platform : 1.5m*0.69m+2m*0.69m+2.5m*0.69m
Rated stretch of front beam : 1100-1700mm
Color : orange or according to your inquiry
Lifting speed : 9~11m/min
LTD63 Hoister Suspended Scaffold Platform with 6m*0.69m*1.18m Aerial Work Platform and Diameter 8.3mm Steel Rope
| Model No. | ZLP630 | |
| Rated load(kg) | 630 | |
| Lifting speed(m/min) | 9~11 | |
| Hoister model | LTD63 | |
| Motor power(kw) | 2×1.5 | |
| Brake torque(N.m) | 15.2 | |
| Rated stretch of front beam(mm) | 1100-1700 | |
| Suspending Platform | No. of platform rack | Single rack |
| No. of platform | 3 | |
| L×W×H(m) | (1.5+2+2.5)×0.69×1.18 | |
| Suspending mechanism(kg) | 2×175 Kg | |
| Counterweight(kg) --optional | 25×40pcs | |
| Diameter of steel rope(mm) | 8.3 | |
| Voltage(v) 3PHASES | 220V/380V/415V (customized) | |
| Ambient temperature | -20℃~+40℃ | |
| Ambient relative humidity | ≤ 90%(25℃) | |



|
|
LTD63 Hoister Suspended Scaffold Platform with 6m*0.69m*1.18m Aerial Work Platform and Diameter 8.3mm Steel Rope Images |
